ASPIRATED AND FILTERED SAFETY CABINET FOR THE COMBINED STORAGE OF CHEMICALS, ACIDS AND BASES, AND SOLID AND LIQUID FLAMMABLES IN COMPLIANCE WITH EN 14470-1, EN 61010-1, EN 16121, EN 16122 NORMS – CE MARK – FIRE RESISTANCE ‘TYPE 90’ – 90 min. TÜV CERTIFICATION

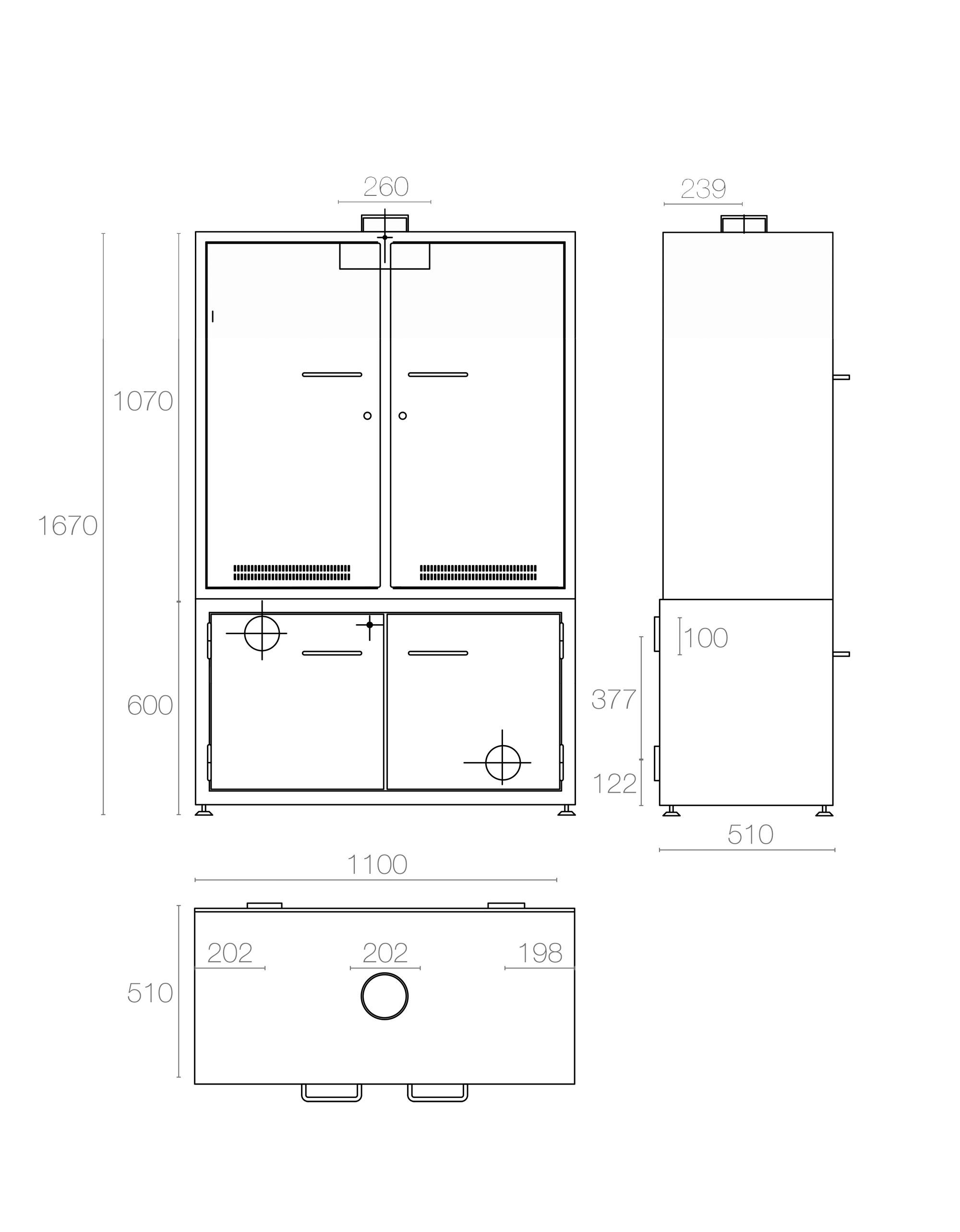

| DESCRIPTION Completely produced in pickled steel, 10/10 mm thickness, painted with epoxy acid-proof powders. Thickness of painting from a minimum of 60μm (micron) to a maximum of 250μm (micron). Key lock with extractable cylinder (on demand “passe-partout kit” master key in case of lost keys). “Product and public liability insurance” valid for all lifelong of the cabinet. COMPARTMENT FOR CHEMICALS, ACIDS AND BASES PRODUCTS Tray-shaped shelves adjustable in height by racks, with bottom basin. ON/OFF lamp. COMPARTMENT FOR FLAMMABLES PRODUCTS Double, inflatable and anti-dust trimmings, and with protection against “cold and hot fumes”. Door’s closure with thermic device at 50° C. Not electric. Mechanical certified safety valves with automatic closure at 70±10° C. Patented safety catch Ignis-lock®.* DETAILS External Dimensions: 1100 x 510 x 1670 mm Internal Dimensions: 490+490x465x1020 + 935x395x445 mm Weight: 300 Kg Total Volume: 465+164 lt. ACCESSORIES Spare active charcoal filter fumes conveyor Predisposed for fan and filter in flammables compartment Additional coated acid-proof shelves DOWNLOAD Data Sheet |
