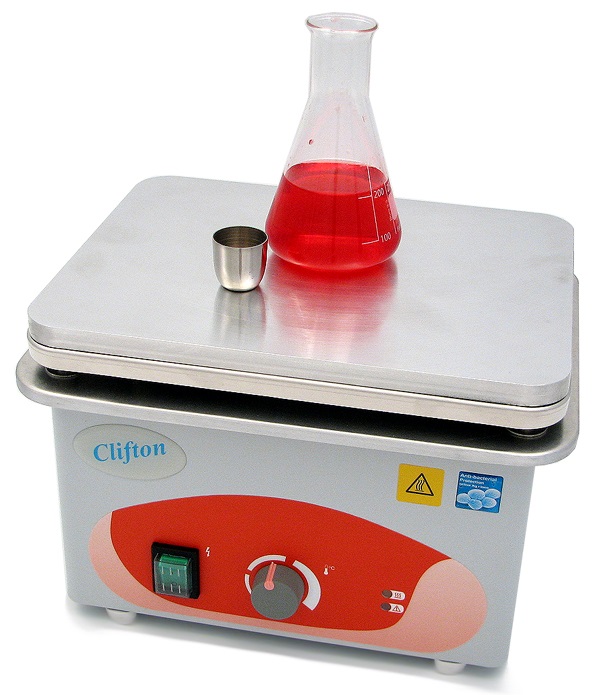

Analogue Hotplate Thermostat, HP1-1, Made in England

Dimensions :

External : 325w x 260d x 200h mm
Hob dimensions : 305w x 240d mm
Packed : 33 x 27 x 20cm
Temperature Range :ambient +10° – 320°C

Temperature Setting : analogue dial Sensitivity : ±10°C @ 150°C

Hob maximum load, guidance8kg @ maximum 300°CMass evenly spread across Hob

Retort points : single M10 fixing point, rear hotplate

Heater Power : (220-240V)1000W

Voltage : 230V

Packed Weight : 7.2 kg

Product Code HP1-1

Description :

These analogue hotplates feature a generous working area, thermostatically controlled, with an illuminated on/off switch, heater and Hot warning indicator.

Featuring a hob surface, which overlaps the body to ensure that no spillages enter the controls. The hob is solid aluminium, 12mm thick for excellent thermal properties and uniform heat distribution over its working area.

Painted surfaces and the control panel have an antibacterial protection and are also all chemical resistant wipe clean surfaces. Hob temperature can be adjusted using the control dial.

Sand bath kits allow samples to be directly immersed in a dry and high temperature environment, see accessories. Also these Hotplates accept standard laboratory retort rods which enable scaffolding to be constructed so that vessels can be heated without direct contact with hot surface.

Safety Features :

HOT warning indicator when hob exceeds 60°C.

Fitted with non-slip rubber feet for safety.

Hob overlaps the body to reduce chance spillages enter the controls.

Power Consumption : (220-240V)1000W

Warranty Period : 3 Years

Features and Benefits :

  1. Solid aluminium top plate with excellent thermal properties.
    2. Choice of three sizes suiting your needs for either large hotplate working area down to a small size unit.
    3. Featuring and on/off mains switch and heater on indicator.
    4. The hob overlaps the base ensuring spillages do not ingress into the controls.
    5. Easily converted into a sand bath with accessory kit for direct immersion of samples.
    6. Accepts laboratory scaffolding.
    7. Hob maximum temperature 350°C.
    8. Fitted with non-slip rubber feet for safety.
    9. Fitted with an IP rated clear booted on/off mains switch preventing ingress of moisture.
    10. Easy to clean hob.
    11. Sturdy construction – powder coated exterior providing a durable chemical resistant.
    12. Built to latest safety standards and supplied with comprehensive operating instructions and Three-year warranty.
    13. Each hotplate is uniquely identified with its own serial number recorded on our product database, which includes all of its manufacturing inspection data. Electrically tested for safety at final inspection and a test certificate
