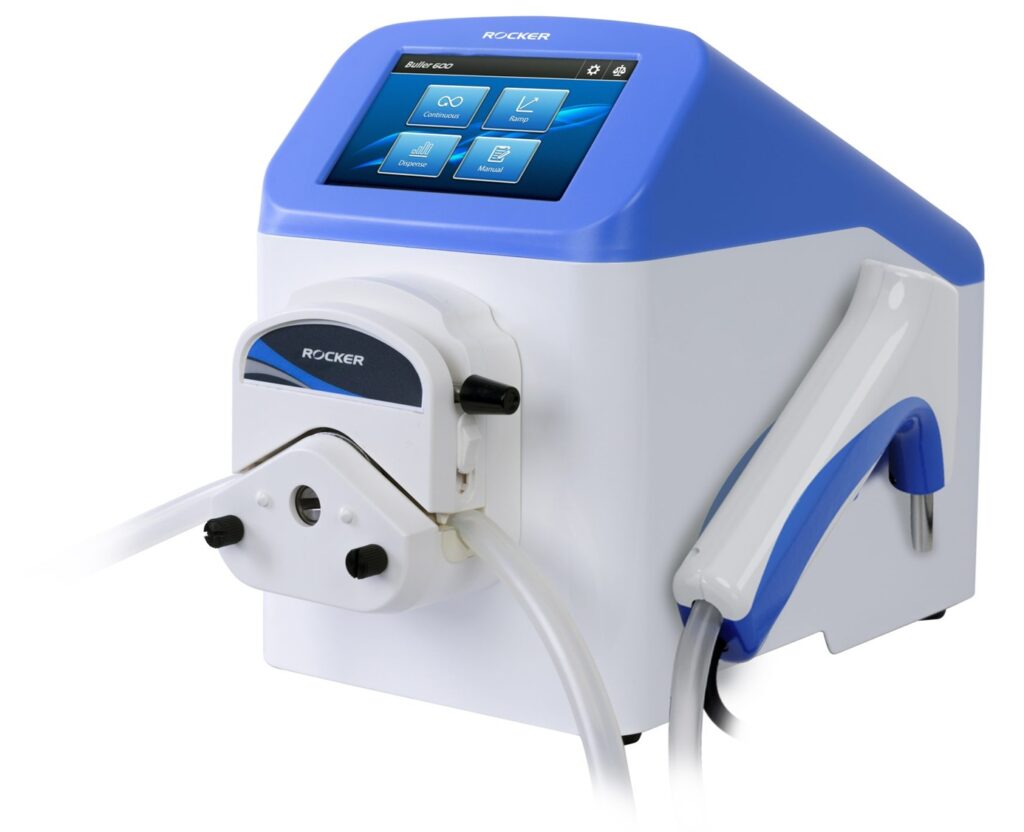

| Buller 600 – DSP Dispensing Peristaltic Pump | ||
|---|---|---|
| GENERAL DATA | ||
| Max. flow rate | 1950 mL/min | |
| CONTROL DATA | ||
| Timer | 999h59m59s | |
| Display | 5″ touchscreen | |
| Range | 1 ~ 600 rpm | |
| Accuracy | 1 % | |
| Program | Continuous, Microbial, Dispense, Manual | |
| Remark | Control type: Digital, variable-speed Channel: 1 | |
| ELECTRICAL DATA | ||
| Voltage | 100-240V | |
| Frequency | 50/60Hz | |
| Max. Power | 80W | |
| Safety functions | Fuse | |
| OTHER DATA | ||
| Net weight | 5.8 Kg | |
| Dimension(LxWxH) | 20 x 33 x 24 cm | |
| Equipped with | RS 232 Remote Control, Handling dispenser | |
- Pump’s in-built quick-start modes:
◆ Tube (2.5 mL, 5 mL, 9 mL)
◆ Petri dish (15 mL, 18 mL, 20 mL)
◆ Bottle (90 mL, 225 mL, 450 mL) - Ergonomic & comfortable
Ergonomic dispenser makes the grip more comfortable. Effortless dispensing with a single click. - Keep-in-place
Hidden magnet inside pump keeps the dispenser in place smartly and tidy. - Accurate dispensing
Accurate dosage volume from 1 mL to 9999 mL ensured by back-suction function. - Make calibration easy
No more repetitive number entries, Buller 600 pump calls all required parameters automatically. Finish calibration in a single tap. - In compliance with ISO 7218
Built-in microbial program in compliance with ISO 7218 guidance, ideal for dispensing media and dilute buffer in all microbiological tests. - One-Year Warranty
Buller 600 – DSP Dispensing Peristaltic Pump International Certificates
- CE certification
- RoHS certification
- IP 33 certification
Buller 600 – DSP Dispensing Peristaltic Pump Applications
- Microbiology test
- Biomedical liquid transfer
- Pharmaceutics
Dispensing Peristaltic Pump Order Information
| Part Number | Description |
| 185601-01(02) | Buller 600 Dispensing Peristaltic Pump, AC100-240V, 50/60Hz, US plug (EU plug) |
| 185601-01(02)-DSP | Buller 600 – DSP Dispensing Peristaltic Pump, AC100-240V, 50/60Hz, US plug (EU plug) |
| 184100-15 | Normal Flow Rate Pump Head, ~1950 mL/min |
| 184100-20 | High Flow Rate Pump Head, ~2130 mL/min |
| 185600-10 | Handling Dispenser, DB9 connector, 2 m |
| 185600-51-16 | Dispensing Kit (#16) for Handling Dispenser (include nozzle, sinker, and holder) |
| 185600-51-17 | Dispensing Kit (#17) for Handling Dispenser (include nozzle, sinker, and holder) |
| 185600-51-25 | Dispensing Kit (#25) for Handling Dispenser (include nozzle, sinker, and holder) |
| 185600-41 | Foot Switch, DB9 connector, 2 m |
| 185600-48 | TYGON S3 TM E-3603 Tubing, 16#, 15 m / box |
| 185600-53 | TYGON S3 TM E-3603 Tubing, 17#, 15 m / box |
| 185600-54 | TYGON S3 TM E-3603 Tubing, 25#, 15 m / box |
| 185600-55 | Biosicon Tubing, 16#, 15 m / box |
| 185600-56 | Biosicon Tubing, 17#, 15 m / box |
| 185600-57 | Biosicon Tubing, 25#, 15 m / box |
| 184100-48 | PHARMED® BPT Tubing, 16#, 7.5 m / box |
| 185600-49 | PHARMED® BPT Tubing, 17#, 7.5 m / box |
| 185600-50 | PHARMED® BPT Tubing, 25#, 7.5 m / box |
