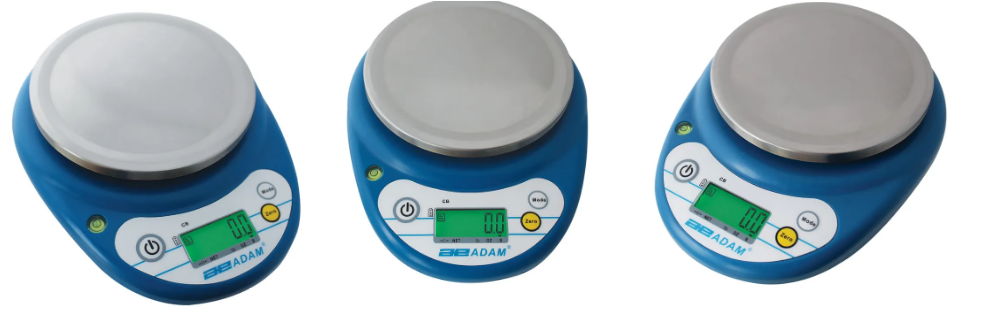

CB Series Compact Balances 0.1gm/1gm – 3kg

Capacity: 500g to 3000g
Readability: 0.1 to 1 g


CB balances can manage most small tasks, such as measuring compounds in chemistry classes, portioning at food service establishments, or weighing small animals. Compact and portable, the CB transports easily to the field, or from bench to bench in a science classroom. The CB is powered by battery or an optional AC adapter.
A sealed keypad and one-piece housing make the CB simple to clean, and help protect internal components from dirt and spills. The grade 304 stainless steel pan can be wiped down quickly and accommodates either single items or bulk powders.
Model CapacityReadabilityPan Size
CB 501500g0.1g130mm ø
CB 10011000g0.1g130mm ø
CB 30003000g1g130mm ø
CalibrationExternal calibration
Weighing Unitsg, kg, lb, lb:oz, oz
Stabilization Time1.0
Linearity4g
Power Supply5VDC 1A adapter / Internal rechargeable battery
ConstructionABS plastic
Operating Temperature0° to 40°C
Overall Dimensions255x290x105mm (wxdxh)
Net Weight2.5kg
Display Digit Height24mm
Battery Life (Hours)240.0

Downloads

Manuals

Datasheets

Applications

  • CheckweighingCheckweighing
  • Parts countingParts counting
  • Percentage weighingPercentage weighing
  • WeighingWeighing

Technical Highlights

  • Backlit displayBacklit display
  • Internal rechargeable batteryInternal rechargeable battery
  • External calibrationExternal calibration
  • Multiple weighing unitsMultiple weighing units
  • Tare FunctionTare Function
