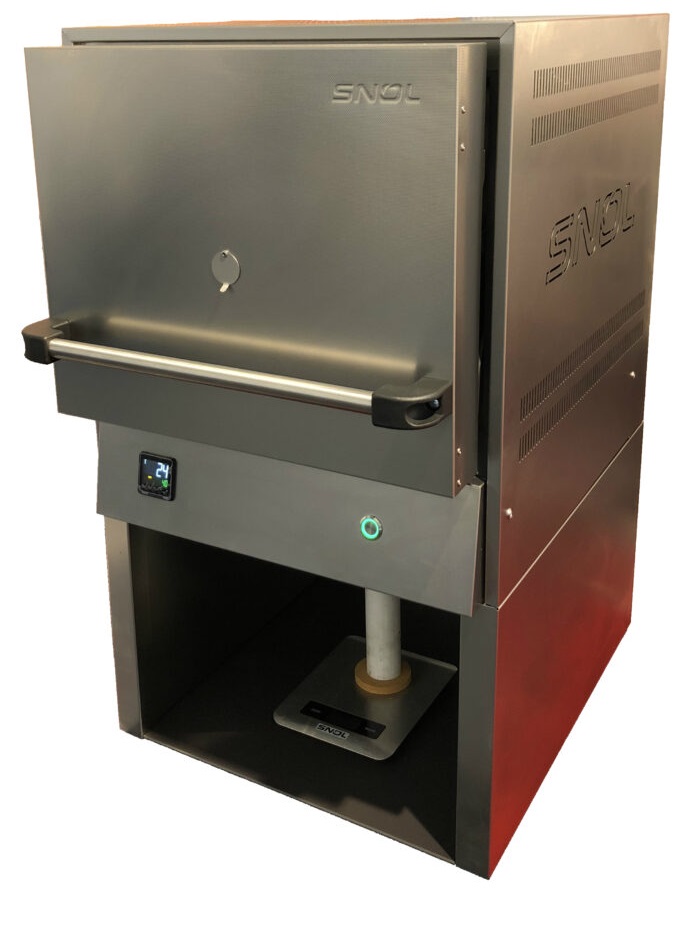

Electric Muffle Furnace SNOL 13/1100 LED

Fan-assisted chimney for air extraction – OEM PRODUCT

The high-accuracy electric muffle furnace SNOL 13/1100 LED is designed for combustion loss determination with the assistance of integrated balances, which weigh the materials before, during, and after the process. This can also indicate the completion of the process – as soon as the weight ceases to decrease. To eliminate gases or smoke released during thermal processing, an exhaust system may be additionally installed. It is used with a variety of materials such as sediment, sludge, soil, waste, or inorganic materials like cement, lime, calcined bauxite, and refractories, and can reach temperatures up to 1100°C. The furnace is an excellent fit for scientific laboratories, educational institutions, ceramic studios, and is used in medicine and industry.

Basic Model Specification

  • One piece high thermal efficiency, vacuum-formed ceramic fiber chamber;
  • Heating elements, embedded in a vacuum formed fiber, are inside four walls of the chamber;
  • Outside casing – metal sheet, powder painted grey;
  • Door opens upwards;
  • Door safety interlock switch;
  • Control panel is placed in the underpart of the furnace;
  • Non-programmable temperature controller – Omron E5CC;
  • Ceramic bottom plate mounted to a ceramic tube;
  • Fast heating time due to low thermal mass construction;
  • Low power consumption;
  • Good stability and uniformity;
  • 1 year warranty.

OPTION Available for Order to make OEM orders.

  • Balances;
  • Process observation window (ø 35 mm) up to 1100 °C;
  • Fan-assisted chimney for air extraction;
  • Additional ceramic hearth plates;
  • Buzzer;
  • Digital timer;
  • Protection against overheating;
  • Data recorder;
  • Data communication/USB;
  • Calibration of temperature measurement system;
  • Table for supporting the furnace;
  • Protective gas atmosphere;
  • Gas box up to 1100 °C;
  • Metal tray;
  • Additional 1 year warranty.
  • Technical data – SNOL 8,2/1100 LZM21
  • Volume, L 8.2
  • Maximum temperature, °C 1100
  • Continuous operating temperature, °C T+10-1100
  • Power, kW 1,8
  • Rated supply voltage, V 230
  • Number of phases 1
  • Rated frequency, Hz 50/60
  • Chamber material Fiber muffle
  • Maximum heating-up time (without charge), min. 50
  • Temperature stability 2
  • Temperature uniformity 10°C
  • Airflow Natural
  • Chamber width, mm 195
  • Chamber depth, mm 310
  • Chamber height, mm 135
  • Overall width, mm 440
  • Overall depth, mm 602
  • Overall height, mm 555*
  • Mass (Net to), kg 30
