Abel- Pensky’s Flash Point Apparatus – MAS 4082
Ref. Standards IS:1448 – Part 20, IS:101 , IP 170, IP 33, BS:3900
Electrical Heating, with gas test jet and electric heater with AIM 50603 Energy regulator. Suitable for operation on 220V, single phase, 50Hz, AC Supply. AIM 507 For determining closed cup flash point of petroleum products, their mixtures, other liquid and paints, having flash points between 19°C and 49°C. Each instrument is supplied complete with an oil cup, cover fitted with gas test jet assembly, water bath and stand, but without thermometer.
===================================================================
===================================================================
Pensky Martens Flash Point Apparatus – MAS 4083
This is widely used for determination of closed cup Flash Point of Fuel Oil, cut back asphalts, other viscous material and suspension of solids having a flash point about 490C(1200F).The apparatus serve the purpose according to IP 34, ASTM-D-93-58T, IS-1448(P:I) 1960(P:21) and IS 1209/1958 method B. The apparatus consists of Brass Test cup with handle removable cup cover with spring operated rotating shutter having piolet jet, stirrer with flexible shaft. The assembly rests in Air Bath which is covered with Dome shape metal top. The cup is fitted with insulated handle and locking arrangement near cup plange. The assembly rests on a round shaped heater with different temperature regulation system suitable for operation on 220 Volts AC mains.
=================================================================
=================================================================

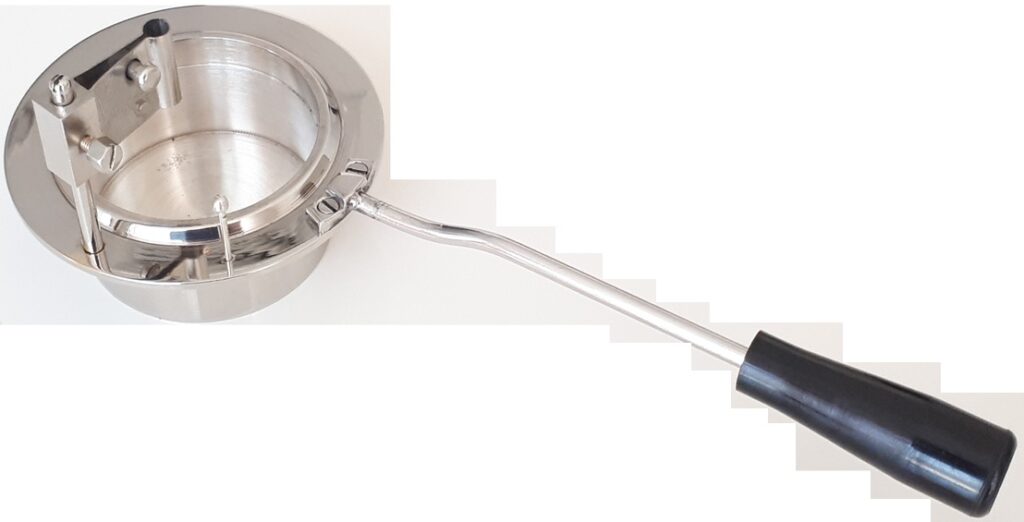

Open Cup, Flash Point & Fire Point Apparatus – Cleveland Flash Point – MAS 4084
As per IP 35, IS 1448 (P-21)
Used for determination of open flash point and fire point of petroleum products except when the Cleveland apparatus is specified.
Only open Cup with Thermometer holder & wooden handle.
===================================================================
===================================================================
Electric Heater for Flash Point Open Cup – MAS 4084
As per IP 35, IS 1448 (P-21)
Used for determination of open flash point and fire point of petroleum products except when the Cleveland apparatus is specified.
==================================================================
==================================================================
Brand : MAS Scientific – India
Flash & Fire Point of Lubricant on heating by using flame.
Flash & Fire Point Apparatus ASTM IS 1448 part 69 = bitumen
