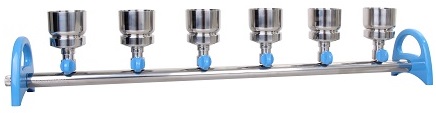

Manifold 6-Places, S.Steel with 100ml Filter Funnel MultiVac 601-MB

Specification
◆ Number of branch： 6
◆ Filter diameter： 47 mm
◆ Funnel capacity： 100 ml
◆ Hose barb： ID8 (5/16 inch)
◆ Dimension (LxWxH)：85 x 13 x 14.3 cm

Material
◆ Body： SS316
◆ Control valve： SS316
◆ Adaptor： SS316
◆ Membrane support： SS316
◆ Hose barb / Vent valve： SS316
◆ Handle / Knob： Aluminum
◆ Funnel： SS316

User Procedure Vedio Link

Features :
◆ Quick-assembly and disassembly
Each component can be removed easily by hand for cleaning and autoclaving to prevent biofilms and eliminates sources of contamination.

◆ Convertible funnel adaptor​​
Convertible funnel adaptor design allows user to fit their desired funnel (reusable or disposable) easily.

◆ Innovative vent valve design
An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out residual waste water.
Innovative vent valve design
◆ Quick-Fit hose barb
Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.
Quick-Fit hose barb
 ◆ Individual control valve
Each branch permits individual control.

Applications :
◆ Microbiology test
◆ Suspended solid test
◆ Vacuum filtration

Ordering Information :
◆ 180601-02    MultiVac 601-MB, 6-Places S.Steel Manifold with 100ml S.S. filter funnel

Ordering Information:
◆ 180100-01      100ml SF filter funnel
◆ 180100-03       300ml SF filter funnel
◆ 180100-05       500ml SF filter funnel
