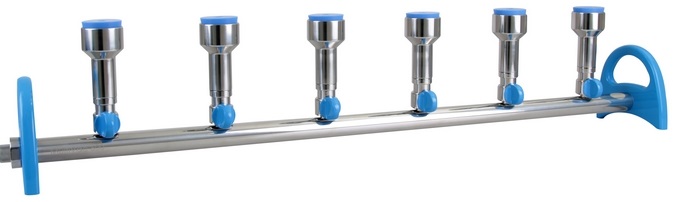

Manifold, 6-Places S.Steel, with Stopper, MultiVac 600-MS

Specification
◆ Number of branch： 6
◆ Filter diameter： Optional
◆ Funnel capacity： Optional
◆ Effective filtration area ： Optional
◆ Hose barb： ID8 (5/16 inch)
◆ Dimension (LxWxH)：85 x 13 x 16 cm

Material
◆ Body： SS316
◆ Control valve： SS316
◆ Adaptor： SS316
◆ Hose barb / Vent valve： SS316
◆ Handle / Knob： Aluminum

User Procedure Vedio Link

Features :
◆ Quick-assembly and disassembly
Each component can be removed easily by hand for cleaning and autoclaving to prevent biofilms and eliminates sources of contamination.

◆ Convertible funnel adaptor​​
Convertible funnel adaptor design allows user to fit their desired funnel (reusable or disposable) easily.

◆ Innovative vent valve design
An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out residual waste water.
Innovative vent valve design
◆ Quick-Fit hose barb
Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.
Quick-Fit hose barb
 ◆ Individual control valve
Each branch permits individual control.

Applications :
◆ Microbiology test
◆ Suspended solid test
◆ Vacuum filtration

Ordering Information :
◆ 180600-01   MultiVac 600-MS, 6-Places S.Steel Manifold

Ordering Information (Optional) :
◆ 200300-01          MF 3, 300ml Magnetic filter holder
◆ 200500-01          MF 5, 500ml Magnetic filter holder
◆ 167110-16          No.8 silicone stopper
