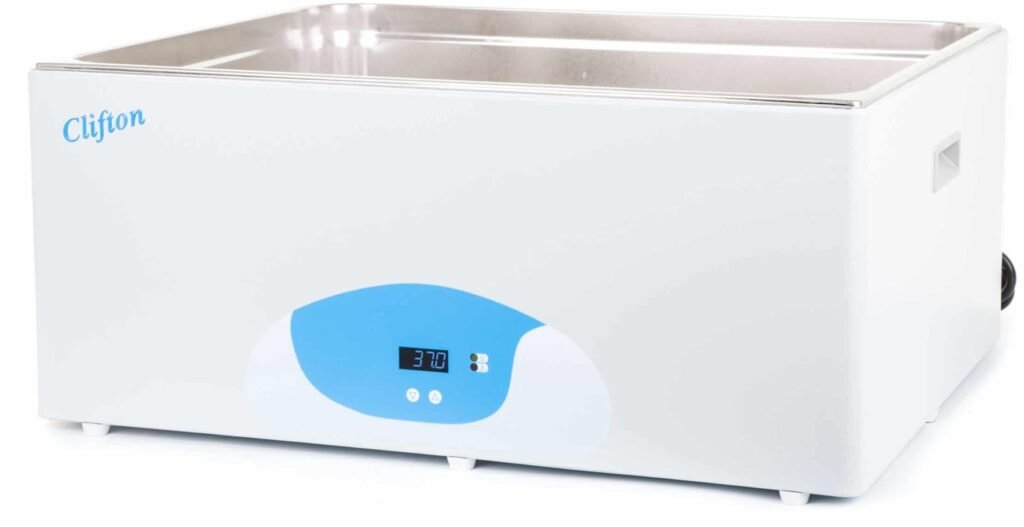

NE2D Advanced Digital Water Baths, Made in England
Temperature Range : Ambient +5°C – 100°C
Corrosion-proof large-area Stainless Steel Body
Supplied with Perforated bottom shelf, stainless steel
The NE2D advanced digital water bath provides a stable temperature environment ideal for meeting quality control requirements, featuring digital PID temperature control for precision. Controls feature auto alarm setting, illuminated on/off switch, heater and over temperature indications.
The advanced digital water bath comprises of a high quality corrosion resistant stainless steel tank, with a bright clean finish housed in a durable paint finished outer case. Painted surfaces feature anti-bacterial finish with good chemical resistance. Fitted with side lifting handles for ease of transportation.
Drain tap fitted on 56 Litres Water Bath.
| Chamber Capacity | 56 Liters |
| Temperature Range | Ambient + 5°C – 100°C |
| Temperature Control | PID Digital, LED display showing actual or set temperature, resolution 0.1°C |
| Temperature Alarm | Over temperature alarm is automatically set 4˚C above set point |
| Sensitivity | ±0.1°C |
| Heater Power 220v to 240v | 2500W |
| External Dimension | 660w x 540d x 290h |
| Internal Dimension | 620w x 500d x 200h |
| Water Level Max. (mm) | 180 |
| Max Depth Above False Base (mm) | 165 |
| Water Level Min. (mm) | 55 |
WARRANTY : 3 YEARS
Safety Features
• Thermal cut out fitted in the heater.
• IP rated clear booted on/off power switch.
• Bath fitted with non-slip rubber feet.
• Over temperature alarm automatically set 4˚C above set temperature with visual indicator and heating is turned off protecting samples from overheating.
Energy Consumption
0.2kWh @ 37°C
0.21kWh @ 60°C – lid fitted
(Based on NE2-4D)
The lower the figure, the less energy used. Information supplied for size and range comparison, guidance only and consumption measured at set point. Please remember that the energy consumption may vary due to factors such as location, ventilation, ambient temperatures and loading.
Controls
Featuring bold LED display of measured temperatures in real-time, increments of 0.1°C, using precision PID temperature control. Settings retained even after turning the unit off. Easy to use splash proof controls, touch keypads for setting temperature values with indicators for heating and over temperature alarm. Features auto setting over temperature alarm protecting samples at set temperature. Every unit undergoes a factory calibration at two temperatures for validation.
Heating and Sensors
Heaters and temperature sensor are concealed under the tank providing an easy to clean working area. The heating footprint covers the underside of the tank and with a low mass provides rapid energy transfer, resulting in quicker heat up times and a reduction in energy consumption and improved temperature uniformity.
Heating Information
Above 60°C it is recommended that to achieve optimum performance the bath should be covered with a lid or layer of polypropylene spheres – see accessories. Covering the bath with a lid reduces energy consumption and running costs. This range of baths will operate at 100°C however are not designed for continuous boiling, the NE1B boiling bath range is recommended.
_________________________________________________________________________________________________
Accessories additional

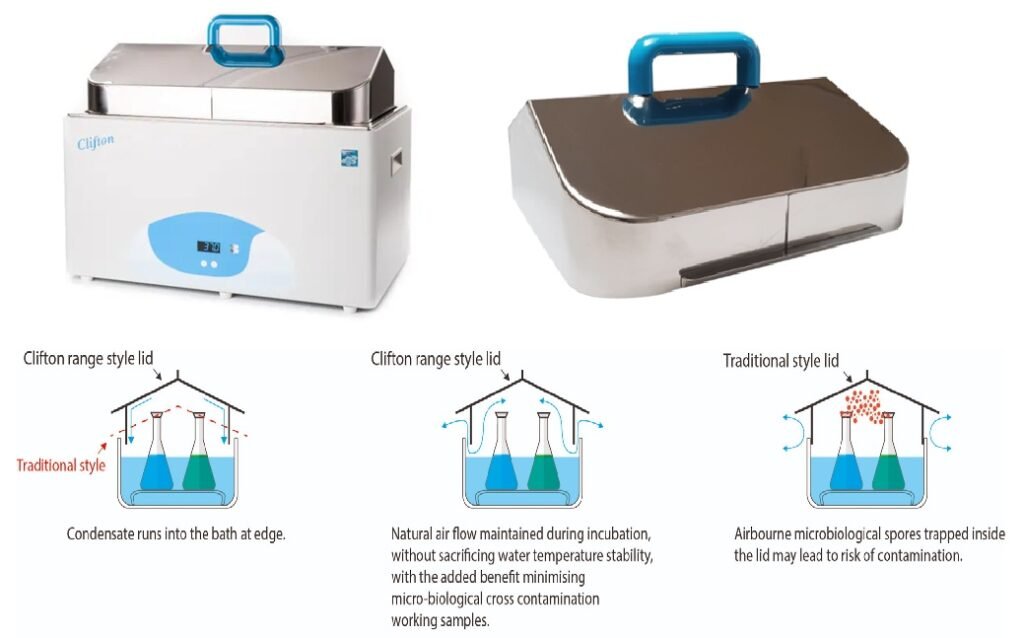

Stainless Steel Lift Off Gable Lid for 56 Liter water baths – MAS 5955

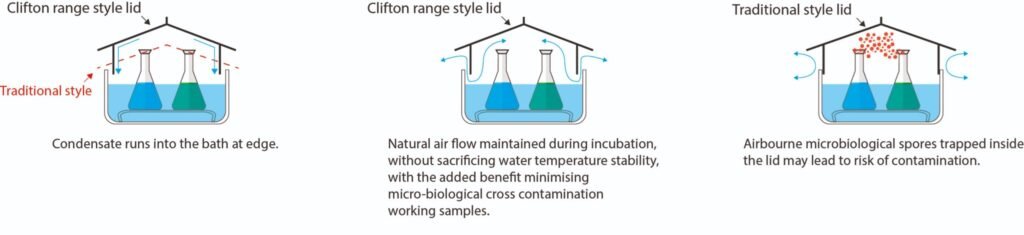

Clifton stainless steel gable lids help reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These stainless steel gable lids with a high profile allow extended use of the bath, right into the edges of the tank. No drip points to contaminate samples. The lid design ensures all condensate returns back into the bath. Insulated handles for safe use.

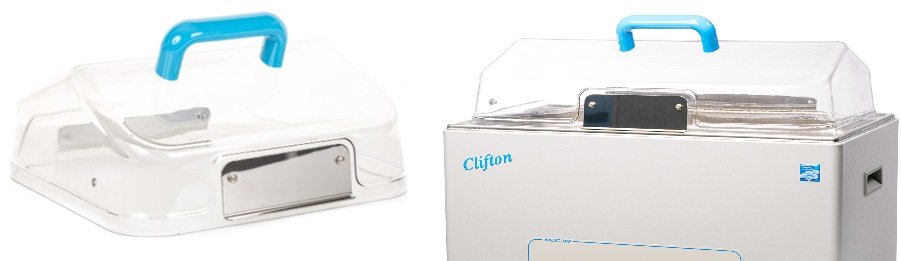

GL-56AF, Clear Lift Off Gable Lid PVC – MAS 5954
Clifton clear gable lids help reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These gable lids with a high profile allows extended use of the bath, right into the edges of the tank. No drip points to contaminate samples. The lid design ensures all condensate returns back into the bath. Insulated handles for safe use.

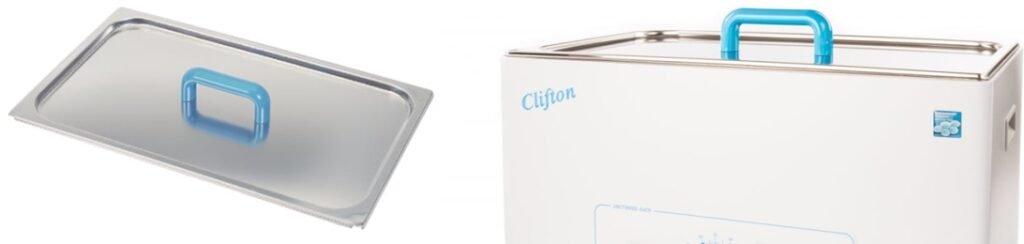

LD-56, Stainless Steel Flat Lid – MAS 5956
When fitted, this lid prevents contamination of liquid from airborne particles. Can also be useful when a Clifton water bath is ‘in use’, minimising heat loss, saving energy, and assisting to maintain bath temperature ready for the next application. The lid is fitted with an insulated handle.
