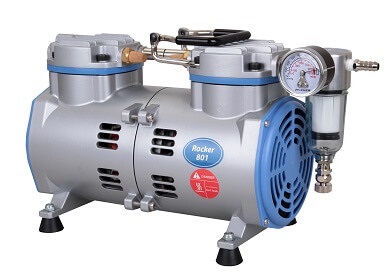

| Rocker801 | 220V/50Hz | |
| Max. power | 200W | |
| Max. current | 1.2A | |
| Max. vacuum | 670 mmHg | |
| Max. flow rate | 68 L/min | |
| Motor rotation speed | 1450 RPM | |
| Horse power | 1/3 HP | |
| Noise level | 68 dB | |
| Hose barb | ID8 (5/16 inch) | |
| Net weight | 7.9Kg | |
| Dimension (LxWxH) | 34.5 x 17.5 x 20 cm | |
| Vacuum Regulator | Yes | |
| Overflow protection | Yes | |
| Thermal protection | Yes |
Oil Free Vacuum Pump / Dry Vacuum Pump Features:
◆ No air pollution, maintenance free
Rocker series lab vacuum pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
◆ Vacuum regulator
Rocker series lab vacuum pumps are equipped with vacuum regulator to adjust vacuum.
◆ Thermal protection device
Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.
◆ Moisture trap with filter cartridge
Rocker 801 lab vacuum pump is equipped with filter cartridge at the air inlet to filter particle and moisture to prolong the life of pump.
Oil Free Vacuum Pump / Dry Vacuum Pump International Certificates
◆ CE certification
◆ RoHS certification
Oil Free Vacuum Pump / Dry Vacuum Pump Applications
◆ Vacuum filtration
◆ Vacuum drying / oven / defoaming
◆ Suspended solid test
◆ Microbiological test
◆ Air sampling
Oil Free Vacuum Pump / Dry Vacuum Pump Ordering Information :
| Product Part Number | Product |
| ◆ 167801-11◆ 167801-22 | Rocker 801, Oil Free Vacuum Pump AC110V, 60Hz Rocker 801, Oil Free Vacuum Pump AC220V, 50Hz |
