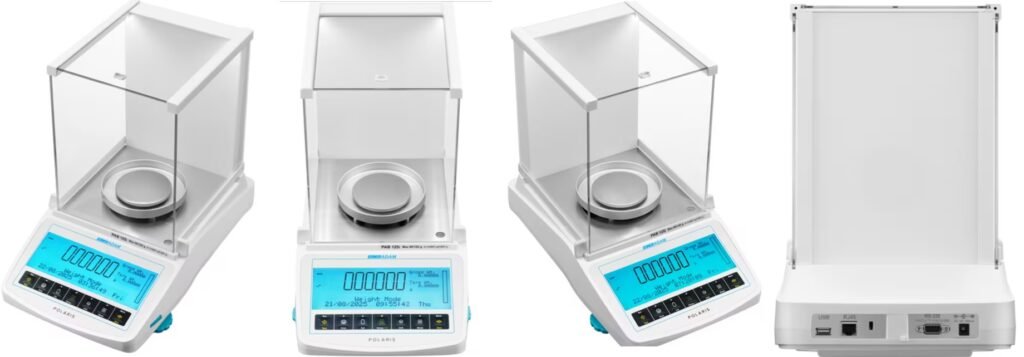

From a brightly illuminated weighing chamber to remarkable ease of recordkeeping and communications (including standard Bluetooth, RJ45 ethernet, RS-232 and USB interfaces), Polaris semi-micro and analytical balances ensure a precise, intuitive weighing experience. An intuitive, multi-line display offers at-a-glance instructions, fast weighing results and application status for a complete overview of the weighing experience. Checkweighing is simplified with a colour-changing backlight to show if samples are within user-specified limits
Technical specification
Model PAB 125i
Item Number: 1010017670 GTIN/UPC: 840886114695
Metrology
- Capacity 80g / 120g
- Readability 0.00001g / 0.0001g
- Standard Deviation <5% capacity (g): 0.000020g
- USP Minimum Weight (K=2, U=0.10%) (g): 0.03950g
- USP Optimized Minimum Weight (USP, K=2, U=0,10%, SRP≤0,41d) (g) : 0.00820g
- Minimum weight (K=2, U=1%) (g) : 0.00395g
- Accuracy – repeatability SD >80% lower range: 0.00002g
- Accuracy – repeatability SD >80% upper range: 0.0001g
General Specifications
- Pan Size 80mm ø
- Weighing Units : ct, custom unit, dr, dwt, g, GN, mg, mm, N, oz, ozt, ti, tl.H, tl.S, tl.T, tol
- Stabilisation Time : 5
- Interface : RS-232/USB/Ethernet RJ45/Bluetooth
- Calibration : Internal automatic calibration | External calibration
- Display : Backlit LCD Graphical with 26mm high digits
Power
- Power Supply 18VDC 830mA adapter
Operating Conditions
- Operating Temperature : 15° to 35°C
Product Information
- Construction body : ABS plastic
- Net Weight : 6.7kg
Dimensions :
- Draft Shield Type Chamber
- Overall Dimensions 235x398x336mm
Features and Benefits
| Colour-changing backlight in checkweighing mode to show if under, over or within acceptable limits Connect seamlessly to PCs, printers, or LIMS via Bluetooth, RJ45 Ethernet, RS-232 and USB interfaces Compliance with Good Laboratory Practices (GLP) and Good Manufacturing Practices (GMP) standards for data tracking Unique air diversion technology (ADT) below the weighing pan discharges warm air from the weighing chamber for more accurate weighing results (PAB 125i only) Bright, LED-lit weighing chamber for clear visibility of samples Security slot for optional lock and cable to help prevent theft Large, grade 304 stainless steel pan allows easy cleaning Parts counting with preset sample sizes Capacity tracker built into display for easily monitoring possible overloads Up to 200 ingredients can be stored in the internal memory (10 formulations each holding 20 ingredients) | Multilingual display allows use in many different countries Selectable digital filtering helps minimise effects of vibration and disturbances Removable draft shield for easy cleaning and transportation offsite Intuitive, easy-to-use display showing instructions, results and application status at a glance Multi-level security permissions: 1 administrator plus up to 99 operators Hook provided for below-balance weighing In-use cover provided to protect the balance from dust, dirt and moisture Solid, durable ABS housing to withstand daily use A 5-year warranty means quality assured for years of use. |
