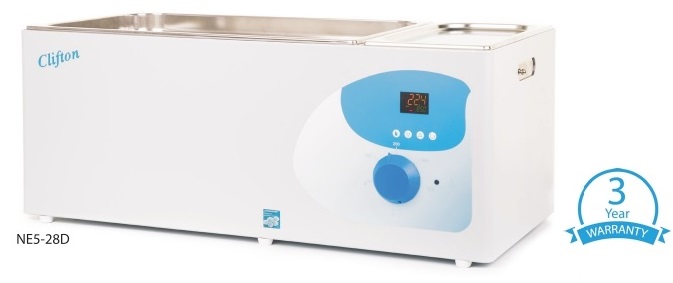

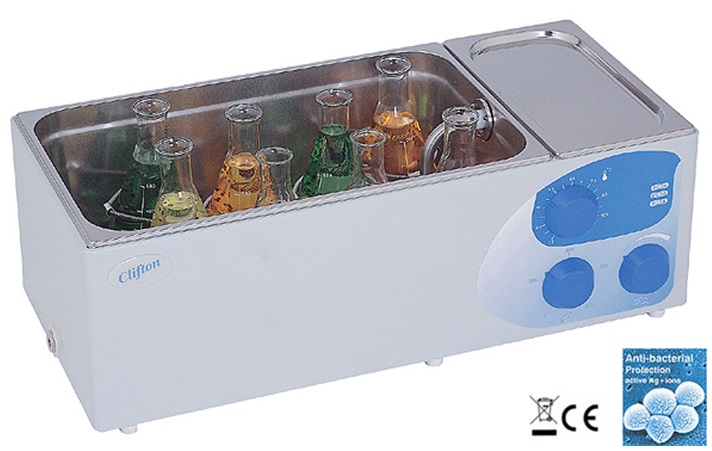

NE5-28 Analogue |
|
| Digital Shaking Water Bath and perforated tray | 28 Litre Analogue Shaking Water Bath | ||
Model |
NE5-10D |
NE5-28D |
NE5-28 |
| Capacity | 10 Liters Tank | 28 Liters Tank | 28 Liters |
| Dimensions External | 449w x 332d x 290h mm | 715w x 332d x 290h mm | 715w x 332d x 290h mm |
| Dimensions Internal | 242w x 300d x 200h mm | 500w x 298d x 200h mm | 500w x 298d x 200h mm |
| Temperature | Ambient +5°C – 99°C | Ambient +5°C – 99°C | ambient +5°C – 99°C |
Accessory DC1-300 provides counter |
cooling from ambient to -20°C. | cooling from ambient to -20°C. | cooling from ambient to -20°C |
| Resolution | 0.1°C | 0.1°C | 0.1°C |
| Controller | PID Digital, LED display | PID Digital, LED display | PID Digital, LED display |
| Linear shaking control | Shaking control 0 to 400 strokes / 0 to 200rpm – stroke length fixed 20mm. | Shaking control 0 to 400 strokes / 0 to 200rpm – stroke length variable up to 40mm. | Shaking control 0 to 400 strokes / 0 to 200rpm – stroke length variable up to 40mm. |
| Voltage | 230V , 50-60Hz | 230V , 50-60Hz | 230V , 50-60Hz |
| Heater Watts | 800W | 1000W | 1000W |
| Packed Weight : | 14.5kg | 22.5kg | 22.5kg |
Clifton® Shaking water bath, featuring precision PID control, allows observation of set and actual temperature simultaneously. A broad range of accessory flask clips and racks ensures flexibility for routine and specialized work.
Accessory clips and racks can be mounted onto the perforated tray which fits onto the reciprocating stainless steel trolley. Flasks, micro liter plates and test-tube racks can easily be loaded and unloaded by lifting out the complete shelf. The trolley can also easily be removed for cleaning. The perforated tray is supplied as standard.
Heaters and temperature sensor are concealed under the tank and provide a clutter free working area which is easy to wipe clean. The heating footprint covers the underside of the tank and with a low mass provides rapid energy transfer, resulting in quicker heat up times and a reduction in energy consumption and improved temperature uniformity.
The shaking system is quiet in use and by removing the trolley and replacing the perforated tray, it can be used as a standard laboratory bath.
The shaker trolley is stable in use and the removable perforated shelf makes loading and unloading easy, unlike other traditional shaker baths where the whole shaker carriage has to be removed.
Clifton Shaker baths features a useful stainless steel recessed tray for standing flasks on prior to and after immersion.
Comprising of a high quality corrosion resistant stainless steel tank, with a bright clean finish, housed in a durable paint finished outer case which has good chemical resistance. Painted surfaces feature anti-bacterial finish which is a hygienic coating and actively inhibits bacterial growth.
Featuring a bold LED display of measured temperatures in real-time and in increments of ±0.1°C, using a precision PID temperature controller. Temperature settings are retained in the memory, even after the unit has been turned off.
Easy to use controls, utilizing touch keypads for setting temperature values.
Features auto setting temperature alarm protecting your work at set temperature.
Every unit undergoes a factory calibration at two temperatures for validation.
Shaking speed control is by analogue dial pointer graduated in 100rpm divisions from 0 – 380rpm. Fixed stoke length 20mm.
Above 60°C it is recommended that to achieve optimum performance the bath should be covered with a lid or layer of polypropylene spheres – see accessories.
Covering the bath with a lid reduces energy consumption and running costs.

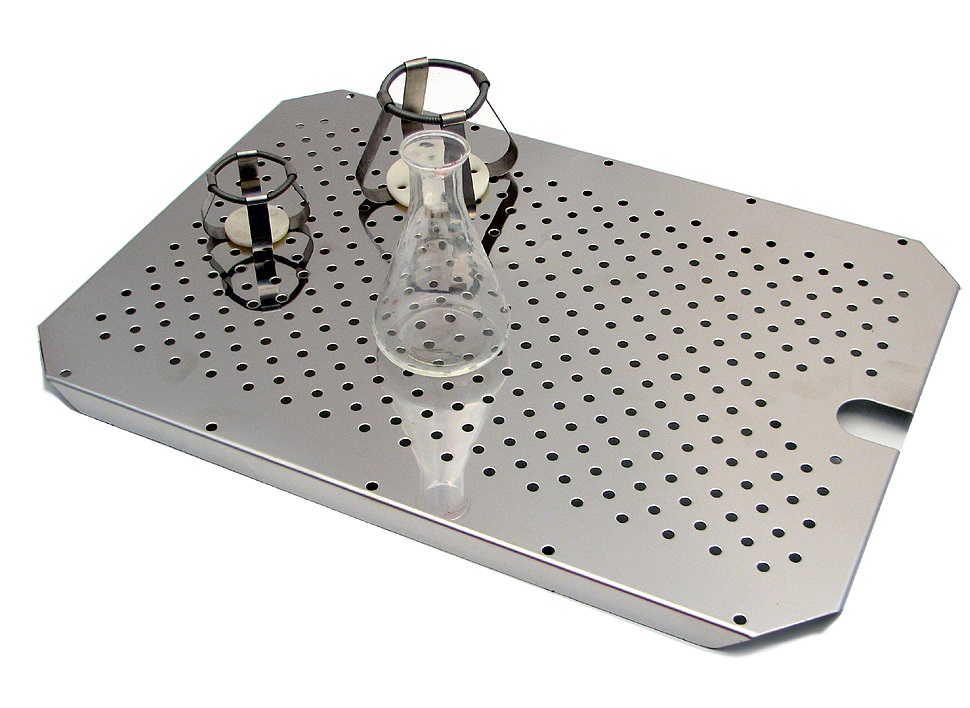

Stainless Steel Perforated Tray – 28 liter
Product Code SBF01804
Packed Dimensions 40 x 30 x 2 cm,
Packed Weight 0.86 kg,
Notes Tray size 376w x 276d mm
The Tray can accommodate the following number of flask clip sets:
25ml Clips = 39 off FC0025
50ml Clips = 32 off FC0050
100ml Clips = 18 off FC0100
250ml Clips = 12 off FC0250
500ml Clips = 8 off FC0500
1000ml Clips = 5 off FC1000
2000ml Clips = 2 off FC2000.

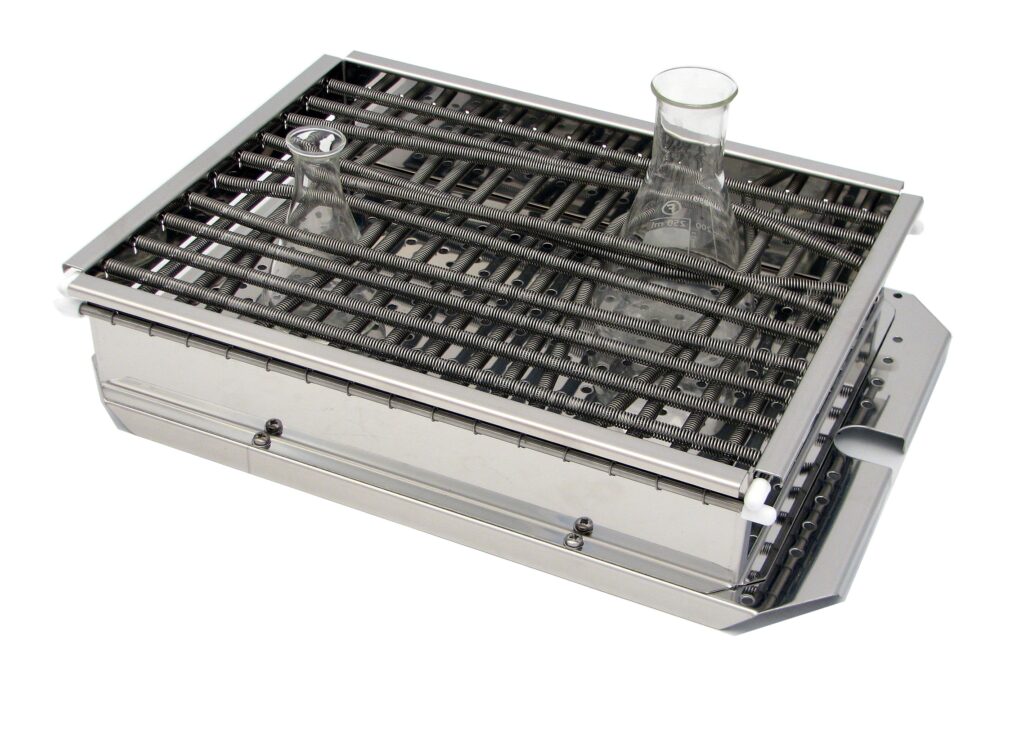

Stainless Steel Universal Spring Tray to fit – Product Code : SFT9000
Packed Dimensions40 x 30 x 15 cmPacked Weight2.3 kgNotesNumber of Flasks which can be accomdated:
25ml and 50ml = 5 rows 7 deep = 35 flasks or bottles
100ml = 3 rows 5 deep = 15 flasks or bottles
500ml = 2 rows 3 deep = 6 flasks or bottles
1000ml = 1 row 2 deep = 2 flasks or bottles.
Stainless Steel Universal Spring Tray to fit. – Product Code ; SFT9000
Packed Dimensions40 x 30 x 15 cmPacked Weight2.3 kgNotesNumber of Flasks which can be accomdated:
25ml and 50ml = 5 rows 7 deep = 35 flasks or bottles
100ml = 3 rows 5 deep = 15 flasks or bottles
500ml = 2 rows 3 deep = 6 flasks or bottles
1000ml = 1 row 2 deep = 2 flasks or bottles.FeaturesUniversal Spring Clip Tray a multi-spring tray for accommodating a variety of flasks and bottle types, even different sizes. Featuring a criss cross pattern of springs flasks and bottles can be easily inserted and removed.

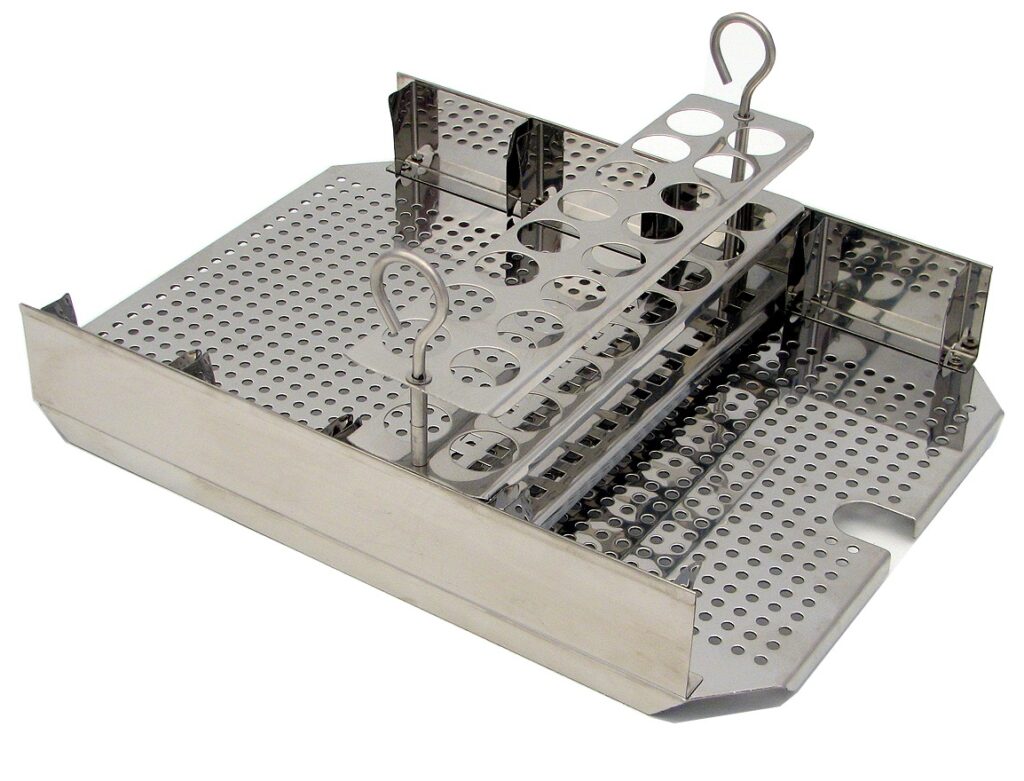

The NE5-28, NE5-28D and NE5-28DT are supplied with a trolley platform to accommodate universal spring tray, flask clip trays and test tube rack trays.
