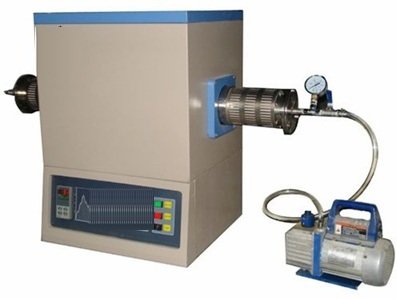

Economy Compact Tube Furnace MX60-12SA with maximum operation temperature of 1100°C and heating region of Ø50x300mm. Tube furnaces provide users with vacuum/controlled atmosphere and high temperature. It is widely used for many processes, including heat treatment of metal in different atmospheres, catalyst formation that need inert gas protection, etc. Fields of application include semiconductor, nanotechnology and carbon fiber, etc.
Additional Vacuum Pump required

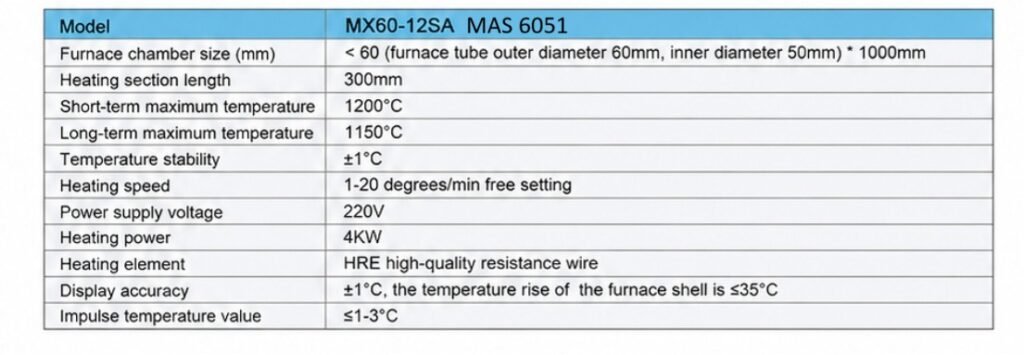

| Model | MAS 6051 – MX60-12SA |
| SKU# | MAS 6051 PID Control |
| Maximum Temperature. | 1200℃ |
| Working Temperature | ≤1150℃ |
| Temperature Zone | Single Temperature Zone |
| Furnace Tube Material | Quartz Tube |
| Quartz Tube Dimension | φ60/52*1000 |
| Heating Zone Length | 300mm |
| Constant Temperature Zone Length | 200mm |
| Voltage | 220V 30A 60Hz single phase as standard |
| Power | 4kW |
| Furnace Body Dimension | 360*580*565mm |
| Weight | 75kg |
| Heating Elements | High Resistance Electrothermal Alloy Wire OCr27A17Mo2 |
| (Recommended) Heating Rate | 0℃-1000℃≦10℃/min； 1000℃-1200℃≦5℃/min |
| Flange Structure | Double-ring Sealing Clamp for Quick Connection |
| Temperature Control Accuracy | ±1℃ |
| Temperature Control | Programmable temperature control system with 50 segments |
| Warranty | One-year limited warranty with lifetime support. Not responsible for damage caused by improper use. |
| Standard Configuration | A set of gas circuit assembly (including a vacuum pressure gauge), a quartz tube, two quartz plugs, a quartz boat, a hook and a pair of heat-resistant gloves. |
