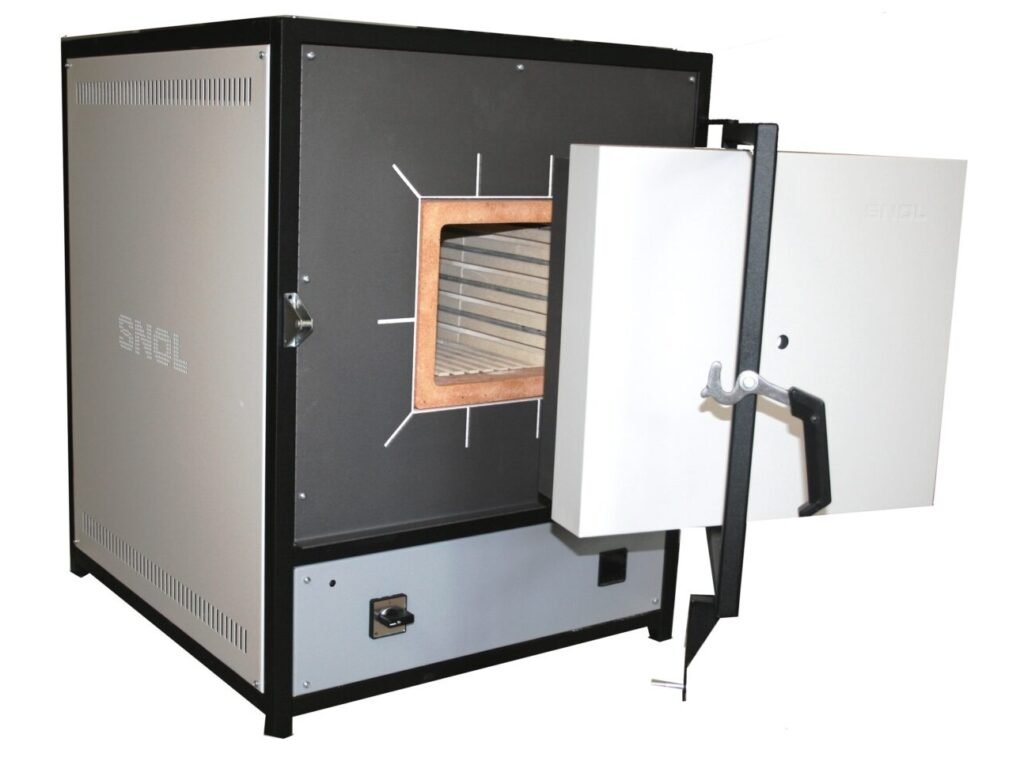

The high-accuracy electric furnace with a solid ceramic chamber, SNOL 12/1200, is designed for hardening, annealing, normalizing, and other thermal processing up to 1200°C. To eliminate gases or smoke released during thermal processing, an exhaust system may be additionally installed. The furnace is an excellent fit for scientific laboratories, educational institutions, medical applications, and industrial use.
- Solid ceramic chamber;
- Enclosed heating elements are in four sides around the chamber;
- Outside casing – metal sheet, powder painted grey;
- Door opens sideways;
- Door safety interlock switch;
- Control panel is placed in the underpart of the furnace;
- Digital PID temperature controller E5CC (1 program, 2 steps);
- Ceramic bottom plate;
- High quality, ecological thermal insulation material;
- Low electric power consumption;
- Short heating up/cooling down period;
- High degree of accuracy;
- 1 year warranty.
- Fan-assisted chimney for forced air extraction;
- Additional ceramic hearth plates;
- Buzzer;
- Digital timer for delayed start only;
- Protection against overheating;
- Data recorder;
- Data communication/USB;
- Calibration of temperature measurement system;
- Table for supporting the furnace;
- Additional 1 year warranty.
Technical data
SNOL 12/1200 LSC01
Volume, L 12
Maximum temperature, °C 1200
Continuous operating temperature, °C T+10-1200
Power, kW 4
Rated supply voltage, V 230
Number of phases 1
Rated frequency, Hz 50/60
Chamber material Ceramic
Maximum heating-up time (without charge), min. 140
Temperature stability 2
Temperature uniformity 10°C
Airflow Natural
Chamber width, mm 215
Chamber depth, mm 295
Chamber height, mm 195
Overall width, mm 640
Overall depth, mm 760
Overall height, mm 825
Mass (Netto), kg 120
