- Tedlar PVF gas sampling bags designed for accurate solid VOCs residual detection in various applications. |
- Durable construction with excellent chemical, corrosion, and organic solvent resistance, ensuring reliable performance in the field. |
- Available in multiple sizes (0.5L, 1L, 2L, 3L, 4L, 5L, 8L, 10L) to meet diverse sampling needs and requirements.
- Features a single PTFE valve that minimizes gas permeation and enhances sample integrity for high precision PPM level analysis
MAS 6057-0.5L
MAS 6057.1L
MAS 6057-2L
MAS 6057-3L
MAS 6057-4L
MAS 6057-5L
MAS 6057-8L
MAS 6057-10L

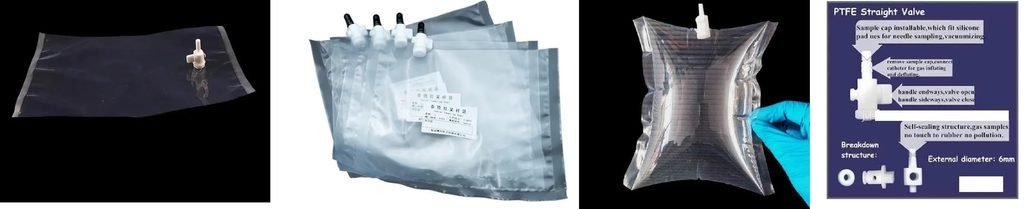

Tedlar PVF Gas Sampling Bag
Tedlar PVF Gas Sampling Bag is made of 2mil Tedlar film. In the late 1970s SKC USA used Tedlar film to make gas sampling bags for the first time, Tedlar PVF is strong, durable, and considered chemically inert to a wide range of compounds. Tedlar gas sampling bag can be used in high precision PPM level analysis sampling, can sample and save all kinds of corrosive gas and liquid samples, the heat-resistance temperature of Tedlar is 150℃～170℃.
used to solid VOCs residual detection. Such as automobile engine, automotive parts, household items detection.
Low gas permeation levels
High tensile strength
Continuous temperature range from \u201398°F to 225°F
Unaffected by the chemical components of gases commonly sampled, like carbon monoxide, sulfur dioxide, hydrogen sulfide, radon and mercaptans
Features:
Excellent chemical resistance, corrosion resistance, organic solvent resistance, and low adsorption.High tensile strength.
The water Moisture osmotic quantity of Tedlar film is 13g/m2.24h.0.1MPa; and oxygen osmotic quantity is 114cc/m2.24h.0.1MPa (the data is measured value not guarantee value).
Gas barrier property of Tedlar PVF film is superior to PTFT FEP film.
Less permeable than FEP, Kynar PVDF and Fluode.
Bags resist puncture in the field.
Recommended in many EPA testing methods.
Standard Tedlar Gas Sampling Bag Sizes:
0.5L, 1L, 2L, 3L, 4L, 5L, 8L, 10L,
Applications:
Tedlar PVF film is strong, durable, and considered chemically inert to a wide range of compounds. Tedlar gas sampling bag can be used in high precsion PPM level analysis sampling, can sample and save all kinds of corrosive gas and liquid samples, and used to solid VOCs residual detection.
Parameter:
Material of bag: PVF
Material of valve: PTFE
Number of valve: 1
Capacity: 0.5L, 1L, 2L, 3L, 4L, 5L, 8L and 10L can be choose.
Operation guide:
The sample
