Specification (220V, 50Hz)
◆ Max. power： 200 W
◆ Max. current：1.2 A
◆ Max. vacuum：120 mbar
◆ Max. flow rate： 80 L/min
◆ Vacuum regulator：Yes
◆ Overflow protection：No
◆ Filter cartridge：No
◆ Thermal protection：Yes
◆ Motor rotation： 1450 RPM
◆ Horse power： 1/3 HP
◆ Noise level： 68 dB
◆ Hose barb： ID10 (3/8 inch)
◆ Net weight： 7.6 Kg
◆ Dimension (LxWxH)：
34.5 x 17.5 x 20 cm
See Video of Using Procedure of Rocker Pump
Features:
◆ No air pollution, maintenance free
Rocker series lab vacuum pumps with vacuum regulator are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
◆ Vacuum regulator
Rocker series lab vacuum pumps with vacuum regulator are equipped with vacuum regulator to adjust vacuum.
◆ Thermal protection device
Every motor of Rocker series lab vacuum pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.
Oil Free Vacuum Pump / Dry Vacuum Pump International Certificates:
◆ CE certification
◆ RoHS certification
Oil Free Vacuum Pump / Dry Vacuum Pump Applications:
◆ Vacuum Filtration
◆ Vacuum drying / oven / defoaming
◆ Suspended solid test
◆ Microbiological test
◆ Air sampling
Oil Free Vacuum Pump / Dry Vacuum Pump Order Information:
| Product Part Number | Product |

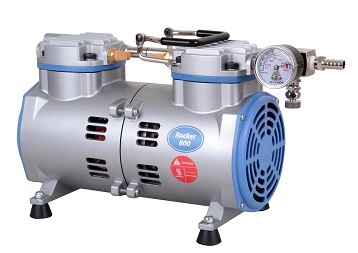

| ◆ 167800-11(22) | Rocker 800, Oil Free Vacuum Pump AC110V, 60Hz (AC220V, 50Hz) |
