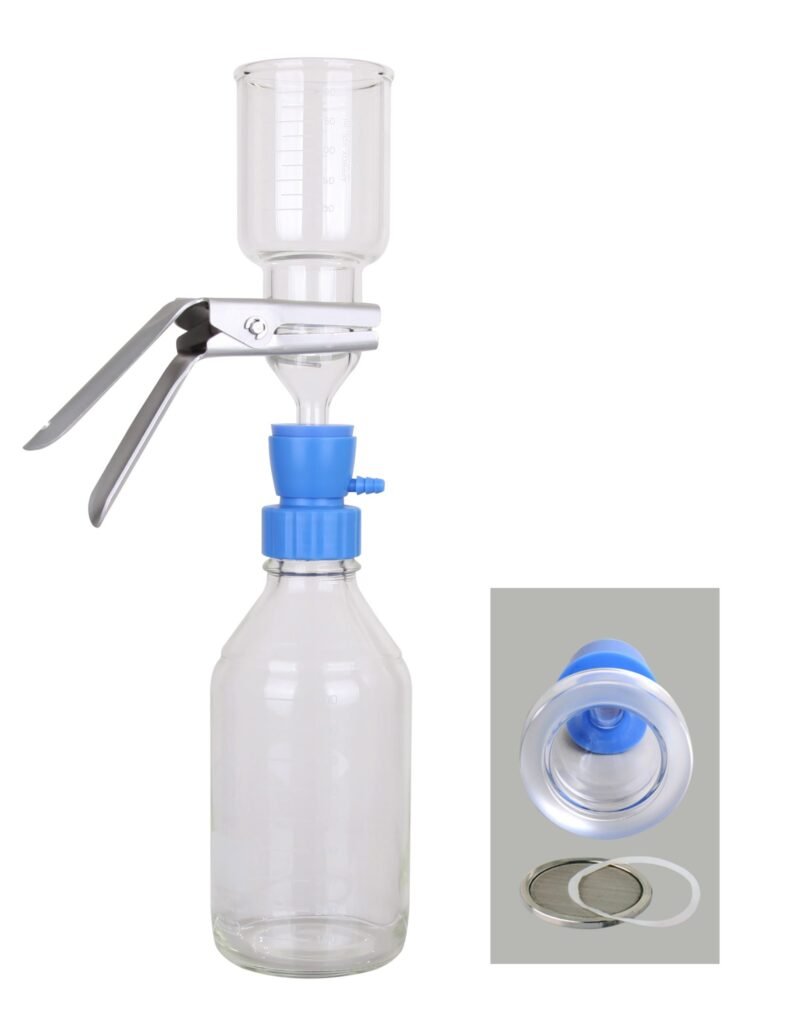

- VF 14 can filtrate and store solution directly in GL45 storage bottle without the need of being transferred from the filtering flask.
- Suitable for GL45 storage bottle
Unique filtration adaptor design can connect with GL45 storage bottle (1000 ml, 2000 ml, 5000 ml etc.) - SS support screen
The stainless steel filter support screen can be reused after simple cleaning and won’t get clogged over time like traditional glass support base.
VF 14 Filtration Apparatus Specification
| Specification: ▸ Funnel capacity: 300 mL ▸ Storage bottle capacity: 1000 mL ▸ Filter diameter: 47 mm ▸ Hose barb: ID4 – 8 ▸ Effective filtration area: 9.6 cm2 | Material: ▸ Funnel – Borosilicate glass ▸ Support base – Borosilicate glass ▸ Membrane support – SS screen with PTFE gasket ▸ Clamp – Aluminum ▸ Filtration adaptor – PP (Autoclavable) ▸ Receiver bottle – Borosilicate glass |

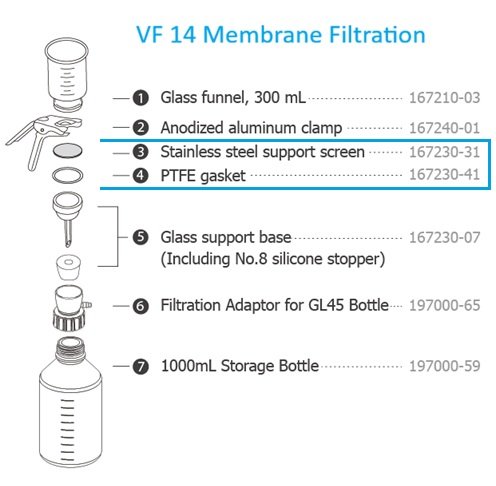

Filtration Apparatus Ordering Information
| Part Number | Description |
| 167200-14 | VF 14, Glass Filtration Set (1-5) |
| 167120-31 | Glass filter holder 300 mL (1-3) |
| 167210-03 | (1) Glass funnel, 300mL |
| 167240-01 | (2) Aluminum clamp, 47mm |
| 167230-31 | (3) SS support screen |
| 167230-41 | (4) PTFE gasket |
| 167230-07 | (5) Glass support base ( including No.8 silicone stopper) |
| 197000-65 | (6) Filtration adaptor for GL45 bottle |
| 197000-59 | (7) 1000 ml Laboratory glass bottle |
